#include <LinnFileSystem.h>

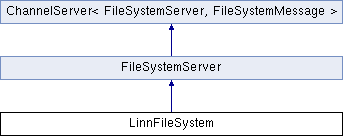

Inheritance diagram for LinnFileSystem:

Public Member Functions
	LinnFileSystem (const char path, Storage storage)
	Class constructor function. More...

LinnSuperBlock *	getSuperBlock ()
	Retrieve the superblock pointer. More...

Storage *	getStorage ()
	Get the underlying Storage object. More...

LinnInode *	getInode (u32 inodeNum)
	Read an inode from the filesystem. More...

LinnGroup *	getGroup (u32 groupNum)
	Read a group descriptor from the filesystem. More...

LinnGroup *	getGroupByInode (u32 inodeNum)
	Read a group descriptor from the filesystem, given an inode number. More...

u64	getOffsetRange (const LinnInode *inode, const u32 blk, Size &numContiguous)
	Calculates the offset inside storage for a given block. More...

Public Member Functions inherited from FileSystemServer
	FileSystemServer (Directory root, const char path)
	Constructor function. More...

virtual	~FileSystemServer ()
	Destructor function. More...

const char *	getMountPath () const
	Get mount path. More...

u32	getNextInode ()
	Get next unused inode. More...

FileSystem::Result	mount ()
	Mount the FileSystem. More...

FileSystem::Result	registerFile (File file, const char path)
	Register a new File. More...

FileSystem::Result	registerDirectory (Directory dir, const char path)
	Register a new Directory. More...

FileSystem::Result	unregisterFile (const char *path)
	Remove a File from the FileSystemServer. More...

virtual File *	createFile (const FileSystem::FileType type)
	Create a new file. More...

void	pathHandler (FileSystemMessage *msg)
	Process an incoming filesystem request using a path. More...

void	mountHandler (FileSystemMessage *msg)
	Process a filesystem mount request message. More...

void	getFileSystemsHandler (FileSystemMessage *msg)
	Read the file system mounts table. More...

virtual bool	retryRequests ()
	Retry any pending requests. More...

Public Member Functions inherited from ChannelServer< FileSystemServer, FileSystemMessage >
	ChannelServer (FileSystemServer *inst)
	Constructor function. More...

virtual	~ChannelServer ()
	Destructor function. More...

int	run ()
	Enters an infinite loop, serving incoming requests. More...

void	setTimeout (const uint msec)
	Set a sleep timeout. More...

Private Member Functions
void	notSupportedHandler (FileSystemMessage *msg)
	Callback handler for unsupported operations. More...

Private Attributes
Storage *	storage
	Provides storage. More...

LinnSuperBlock	super
	Describes the filesystem. More...

Vector< LinnGroup * > *	groups
	Group descriptors. More...

HashTable< u32, LinnInode * >	inodes
	Inode cache. More...

Additional Inherited Members
Public Types inherited from ChannelServer< FileSystemServer, FileSystemMessage >
enum	Result
	Result codes. More...

Protected Types inherited from ChannelServer< FileSystemServer, FileSystemMessage >
typedef void(FileSystemServer ::*	IPCHandlerFunction) (FileSystemMessage *)
	Member function pointer inside Base, to handle IPC messages. More...

typedef void(FileSystemServer ::*	IRQHandlerFunction) (Size)
	Member function pointer inside Base, to handle interrupts. More...

Protected Member Functions inherited from FileSystemServer
FileSystem::Result	processRequest (FileSystemRequest &req)
	Process a FileSystemRequest. More...

FileSystem::Result	inodeHandler (FileSystemRequest &req)
	Handle a request for a File specified by its inode. More...

FileSystem::Result	waitFileHandler (FileSystemRequest &req)
	Handle a WaitFile request. More...

void	sendResponse (FileSystemMessage *msg) const
	Send response for a FileSystemMessage. More...

bool	redirectRequest (const char path, FileSystemMessage msg)
	Try to forward the given FileSystemMessage to a mount file system. More...

void	setRoot (Directory *newRoot)
	Change the filesystem root directory. More...

Directory *	getParentDirectory (const char *path)
	Retrieve parent Directory for a file. More...

FileCache *	lookupFile (const FileSystemPath &path)
	Retrieve a File from storage. More...

FileCache *	findFileCache (const char *path) const
	Search the cache for an entry. More...

FileCache *	findFileCache (const String &path) const
	Search the cache for an entry. More...

FileCache *	findFileCache (const FileSystemPath &path) const
	Search the cache for an entry. More...

FileCache *	insertFileCache (File file, const char pathFormat)
	Inserts a file into the in-memory filesystem tree. More...

void	removeFileFromCache (FileCache cache, File file)
	Remove a File from the cache. More...

void	clearFileCache (FileCache *cache=ZERO)
	Cleans up the entire file cache (except opened file caches and root). More...

Protected Member Functions inherited from ChannelServer< FileSystemServer, FileSystemMessage >
void	addIPCHandler (const Size slot, IPCHandlerFunction h, const bool sendReply=true)
	Register a new IPC message action handler. More...

void	addIRQHandler (const Size slot, IRQHandlerFunction h)
	Register a new IRQ message vector handler. More...

virtual void	timeout ()
	Called when sleep timeout is reached. More...

virtual void	onProcessTerminated (const ProcessID pid)
	Called whenever another Process is terminated. More...

void	retryAllRequests ()
	Keep retrying requests until all served. More...

Protected Attributes inherited from FileSystemServer
const ProcessID	m_pid
	Process identifier. More...

FileCache *	m_root
	Root entry of the filesystem tree. More...

HashTable< u32, File * >	m_inodeMap
	Contains a mapping of inode number to file of all cached files. More...

const char *	m_mountPath
	Mount point path. More...

FileSystemMount *	m_mounts
	Table with mounted file systems (only used by the root file system). More...

List< FileSystemRequest * > *	m_requests
	Contains ongoing requests. More...

Protected Attributes inherited from ChannelServer< FileSystemServer, FileSystemMessage >
FileSystemServer *	m_instance
	Server object instance. More...

ChannelClient *	m_client
	Client for sending replies. More...

ChannelRegistry &	m_registry
	Contains registered channels. More...

MemoryChannel	m_kernelEvent
	Kernel event channel. More...

Index< MessageHandler< IPCHandlerFunction >, MaximumHandlerCount >	m_ipcHandlers
	IPC handler functions. More...

Index< MessageHandler< IRQHandlerFunction >, MaximumHandlerCount >	m_irqHandlers
	IRQ handler functions. More...

ProcessID	m_self
	ProcessID of ourselves. More...

Timer::Info	m_time
	System timer value. More...

Timer::Info	m_expiry
	System timer expiration value. More...

Detailed Description

Linnenbank FileSystem (LinnFS).

This filesystem is rougly based on the Extended 2 FileSystem. Some changes have been made to the superblock: leaving out unused fields and simplified the meaning of existing onces. Directory entries are now static in size, i.e. 64-bytes. Those changes make it easier to program the FileSystem implementation, thus easier to understand and learn from.

Todo:: Currently the LinnFileSystem is read-only and does not support writing.

See also: FileSystemServer; Ext2FileSystem

Definition at line 73 of file LinnFileSystem.h.

Constructor & Destructor Documentation

◆ LinnFileSystem()

LinnFileSystem::LinnFileSystem	(	const char *	path,
		Storage *	storage
	)

Class constructor function.

Parameters

path	Path to which we are mounted.
storage	Storage provider.

Definition at line 25 of file LinnFileSystem.cpp.

References assert, LinnSuperBlock::blocksCount, LinnSuperBlock::blockSize, FATAL, Sequence< T >::fill(), LinnSuperBlock::freeBlocksCount, LinnSuperBlock::freeInodesCount, getInode(), groups, LinnSuperBlock::groupsTable, INFO, LinnSuperBlock::inodesCount, Vector< T >::insert(), LINN_GROUP_COUNT, LINN_INODE_ROOT, LINN_SUPER_MAGIC0, LINN_SUPER_MAGIC1, LINN_SUPER_OFFSET, LinnSuperBlock::magic0, LinnSuperBlock::magic1, NOTICE, NULL, Storage::read(), FileSystemServer::setRoot(), FileSystem::Success, super, and ZERO.

Member Function Documentation

◆ getGroup()

LinnGroup * LinnFileSystem::getGroup ( u32 groupNum )

Read a group descriptor from the filesystem.

Parameters

groupNum Group descriptor number.

Returns: Pointer to an LinnGroup on success, ZERO on failure.

See also: LinnGroup

Definition at line 122 of file LinnFileSystem.cpp.

References groups.

Referenced by getGroupByInode().

◆ getGroupByInode()

LinnGroup * LinnFileSystem::getGroupByInode ( u32 inodeNum )

Read a group descriptor from the filesystem, given an inode number.

Parameters

inodeNum Find the corresponding group via this inode number.

Returns: Pointer to an LinnGroup on success, ZERO on failure.

See also: LinnGroup; LinnInode

Definition at line 127 of file LinnFileSystem.cpp.

References getGroup(), LinnSuperBlock::inodesPerGroup, and super.

Referenced by getInode().

◆ getInode()

LinnInode * LinnFileSystem::getInode ( u32 inodeNum )

Read an inode from the filesystem.

Parameters

inodeNum Inode number.

Returns: Pointer to an LinnInode on success, ZERO on failure.

See also: LinnInode

Definition at line 83 of file LinnFileSystem.cpp.

References assert, LinnSuperBlock::blockSize, Associative< K, V >::contains(), ERROR, getGroupByInode(), inodes, LinnSuperBlock::inodesCount, LinnSuperBlock::inodesPerGroup, LinnGroup::inodeTable, HashTable< K, V >::insert(), NULL, Storage::read(), storage, FileSystem::Success, super, HashTable< K, V >::value(), and ZERO.

Referenced by LinnFileSystem(), LinnDirectory::lookup(), and LinnDirectory::read().

◆ getOffsetRange()

u64 LinnFileSystem::getOffsetRange	(	const LinnInode *	inode,
		const u32	blk,
		Size &	numContiguous
	)

Calculates the offset inside storage for a given block.

Parameters

inode	LinnInode pointer.
blk	Calculate the offset for this block.
numContiguous	Number of contiguous blocks inside the same Inode starting at the given offset.

Returns: Offset in bytes in storage.

See also: LinnInode

Definition at line 132 of file LinnFileSystem.cpp.

References assert, LinnInode::block, LinnSuperBlock::blockSize, LINN_INODE_DIR_BLOCKS, LINN_INODE_NUM_BLOCKS, LINN_MAX_BLOCK_SIZE, LINN_SUPER_NUM_PTRS, Storage::read(), storage, FileSystem::Success, super, and ZERO.

Referenced by LinnFile::read().

◆ getStorage()

Storage* LinnFileSystem::getStorage ( )

inline

Get the underlying Storage object.

Returns: Storage pointer.

See also: Storage

Definition at line 104 of file LinnFileSystem.h.

References storage.

Referenced by LinnDirectory::getLinnDirectoryEntry(), LinnFile::read(), and LinnDirectory::read().

◆ getSuperBlock()

LinnSuperBlock* LinnFileSystem::getSuperBlock ( )

inline

Retrieve the superblock pointer.

Returns: Pointer to the superblock for this filesystem.

See also: LinnSuperBlock

Definition at line 92 of file LinnFileSystem.h.

References super.

Referenced by LinnDirectory::getLinnDirectoryEntry(), LinnFile::read(), and LinnDirectory::read().

◆ notSupportedHandler()

void LinnFileSystem::notSupportedHandler ( FileSystemMessage * msg )

private

Callback handler for unsupported operations.

Parameters

msg	FileSystemMessage pointer

Definition at line 223 of file LinnFileSystem.cpp.

References FileSystem::NotSupported, FileSystemMessage::result, and FileSystemServer::sendResponse().

Field Documentation

◆ groups

Vector<LinnGroup *>* LinnFileSystem::groups

private

Group descriptors.

Definition at line 177 of file LinnFileSystem.h.

Referenced by getGroup(), and LinnFileSystem().

◆ inodes

HashTable<u32, LinnInode *> LinnFileSystem::inodes

private

Inode cache.

Definition at line 180 of file LinnFileSystem.h.

Referenced by getInode().

◆ storage

Storage* LinnFileSystem::storage

private

Provides storage.

Definition at line 171 of file LinnFileSystem.h.

Referenced by getInode(), getOffsetRange(), and getStorage().

◆ super

LinnSuperBlock LinnFileSystem::super

private

Describes the filesystem.

Definition at line 174 of file LinnFileSystem.h.

Referenced by getGroupByInode(), getInode(), getOffsetRange(), getSuperBlock(), and LinnFileSystem().

The documentation for this class was generated from the following files:

server/filesystem/linn/LinnFileSystem.h
server/filesystem/linn/LinnFileSystem.cpp
