Network protocol abstraction class. More...

#include <NetworkProtocol.h>

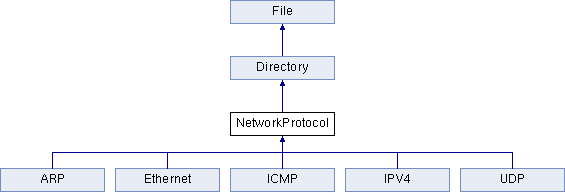

Inheritance diagram for NetworkProtocol:

Public Member Functions
	NetworkProtocol (NetworkServer &server, NetworkDevice &device, NetworkProtocol &parent)
	Constructor. More...

virtual	~NetworkProtocol ()
	Destructor. More...

virtual const Size	getMaximumPacketSize () const
	Get maximum packet size. More...

virtual FileSystem::Result	initialize ()=0
	Perform initialization. More...

virtual FileSystem::Result	getTransmitPacket (NetworkQueue::Packet *pkt, const void address, const Size addressSize, const Identifier protocol, const Size payloadSize)
	Get a new packet for transmission. More...

virtual FileSystem::Result	process (const NetworkQueue::Packet *pkt, const Size offset)=0
	Process incoming network packet. More...

Public Member Functions inherited from Directory
	Directory (const u32 inode)
	Constructor. More...

virtual	~Directory ()
	Destructor. More...

virtual FileSystem::Result	read (IOBuffer &buffer, Size &size, const Size offset)
	Read directory entries. More...

virtual File *	lookup (const char *name)
	Retrieve a File from storage. More...

void	insert (FileSystem::FileType type, const char *name)
	Insert a new directory entry. More...

void	remove (const char *name)
	Remove a directory entry. More...

void	clear ()
	Clears the internal list of entries. More...

Public Member Functions inherited from File
	File (const u32 inode, const FileSystem::FileType type=FileSystem::RegularFile, const UserID uid=ZERO, const GroupID gid=ZERO)
	Constructor function. More...

virtual	~File ()
	Destructor function. More...

u32	getInode () const
	Get inode number. More...

FileSystem::FileType	getType () const
	Retrieve our filetype. More...

virtual FileSystem::Result	write (IOBuffer &buffer, Size &size, const Size offset)
	Write bytes to the file. More...

virtual FileSystem::Result	status (FileSystem::FileStat &st)
	Retrieve file statistics. More...

virtual bool	canRead () const
	Check if the File has data ready for reading. More...

virtual bool	canWrite () const
	Check if the File can be written to. More...

Protected Types
enum	Identifier { Ethernet = 1, IPV4, ARP, ICMP, UDP, TCP }
	List of known network protocol identifiers. More...

Protected Attributes
NetworkServer &	m_server
	Network server instance. More...

NetworkDevice &	m_device
	Network device instance. More...

NetworkProtocol &	m_parent
	Parent upper-layer protocol instance. More...

Protected Attributes inherited from File
const u32	m_inode
	Inode number. More...

const FileSystem::FileType	m_type
	Type of this file. More...

UserID	m_uid
	Owner of the file. More...

GroupID	m_gid
	Group of the file. More...

FileSystem::FileModes	m_access
	Access permissions. More...

Size	m_size
	Size of the file, in bytes. More...

Detailed Description

Network protocol abstraction class.

Definition at line 39 of file NetworkProtocol.h.

Member Enumeration Documentation

◆ Identifier

enum NetworkProtocol::Identifier

protected

List of known network protocol identifiers.

Enumerator
Ethernet
IPV4
ARP
ICMP
UDP
TCP

Definition at line 46 of file NetworkProtocol.h.

Constructor & Destructor Documentation

◆ NetworkProtocol()

NetworkProtocol::NetworkProtocol	(	NetworkServer &	server,
		NetworkDevice &	device,
		NetworkProtocol &	parent
	)

Constructor.

Parameters

server	Reference to the NetworkServer instance
device	Reference to the NetworkDevice instance
parent	Parent upper-layer protocol (or use this for no parent)

Definition at line 22 of file NetworkProtocol.cpp.

◆ ~NetworkProtocol()

NetworkProtocol::~NetworkProtocol ( )

virtual

Destructor.

Definition at line 32 of file NetworkProtocol.cpp.

Member Function Documentation

◆ getMaximumPacketSize()

const Size NetworkProtocol::getMaximumPacketSize ( ) const

virtual

Get maximum packet size.

Returns: Packet size in bytes

Definition at line 36 of file NetworkProtocol.cpp.

References NetworkDevice::getMaximumPacketSize(), and m_device.

Referenced by UDP::sendPacket(), and ICMP::sendPacket().

◆ getTransmitPacket()

FileSystem::Result NetworkProtocol::getTransmitPacket	(	NetworkQueue::Packet **	pkt,
		const void *	address,
		const Size	addressSize,
		const Identifier	protocol,
		const Size	payloadSize
	)

virtual

Get a new packet for transmission.

Parameters

pkt	On output contains a pointer to a Packet
address	Address of the destination of this packet
addressSize	Number of bytes of the address
protocol	Identifier for the protocol to create the packet for
payloadSize	Number of payload bytes

Returns: Result code

Reimplemented in IPV4, and Ethernet.

Definition at line 41 of file NetworkProtocol.cpp.

References FileSystem::NotSupported.

Referenced by IPV4::getTransmitPacket(), UDP::sendPacket(), ICMP::sendPacket(), ARP::sendReply(), and ARP::sendRequest().

◆ initialize()

virtual FileSystem::Result NetworkProtocol::initialize ( )

pure virtual

Perform initialization.

Returns: Result code

Implemented in ARP, IPV4, Ethernet, ICMP, and UDP.

◆ process()

virtual FileSystem::Result NetworkProtocol::process	(	const NetworkQueue::Packet *	pkt,
		const Size	offset
	)

pure virtual

Process incoming network packet.

Parameters

pkt	Incoming packet pointer
offset	Offset for processing

Returns: Result code

Implemented in IPV4, ARP, Ethernet, ICMP, and UDP.

Field Documentation

◆ m_device

NetworkDevice& NetworkProtocol::m_device

protected

Network device instance.

Definition at line 123 of file NetworkProtocol.h.

Referenced by getMaximumPacketSize(), Ethernet::getTransmitPacket(), Ethernet::initialize(), UDP::sendPacket(), ICMP::sendPacket(), ARP::sendReply(), ARP::sendRequest(), and Ethernet::setAddress().

◆ m_parent

NetworkProtocol& NetworkProtocol::m_parent

protected

Parent upper-layer protocol instance.

Definition at line 126 of file NetworkProtocol.h.

Referenced by IPV4::getTransmitPacket(), UDP::sendPacket(), ICMP::sendPacket(), ARP::sendReply(), and ARP::sendRequest().

◆ m_server

NetworkServer& NetworkProtocol::m_server

protected

Network server instance.

Definition at line 120 of file NetworkProtocol.h.

Referenced by UDP::createSocket(), ICMP::createSocket(), UDP::initialize(), ICMP::initialize(), Ethernet::initialize(), IPV4::initialize(), ARP::initialize(), ARP::lookupAddress(), UDP::unregisterSockets(), and ICMP::unregisterSockets().

The documentation for this class was generated from the following files:

lib/libnet/NetworkProtocol.h
lib/libnet/NetworkProtocol.cpp
