Device Class Reference

Abstract device class interface. More...

#include <Device.h>

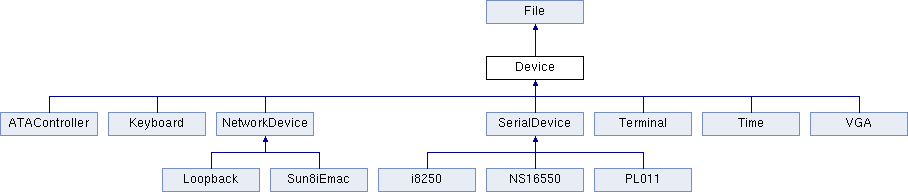

Inheritance diagram for Device:

Public Member Functions
	Device (const u32 inode, const FileSystem::FileType type)
	Constructor. More...
virtual	~Device ()
	Destructor. More...
virtual const String &	getIdentifier () const
	Get unique device identifier. More...
virtual FileSystem::Result	initialize ()
	Initialize the device. More...
virtual FileSystem::Result	interrupt (const Size vector)
	Called when an interrupt has been triggered for this device. More...
Public Member Functions inherited from File
	File (const u32 inode, const FileSystem::FileType type=FileSystem::RegularFile, const UserID uid=ZERO, const GroupID gid=ZERO)
	Constructor function. More...
virtual	~File ()
	Destructor function. More...
u32	getInode () const
	Get inode number. More...
FileSystem::FileType	getType () const
	Retrieve our filetype. More...
virtual FileSystem::Result	read (IOBuffer &buffer, Size &size, const Size offset)
	Read bytes from the file. More...
virtual FileSystem::Result	write (IOBuffer &buffer, Size &size, const Size offset)
	Write bytes to the file. More...
virtual FileSystem::Result	status (FileSystem::FileStat &st)
	Retrieve file statistics. More...
virtual bool	canRead () const
	Check if the File has data ready for reading. More...
virtual bool	canWrite () const
	Check if the File can be written to. More...

Protected Attributes
String	m_identifier
	Unique identifier for this Device. More...
Protected Attributes inherited from File
const u32	m_inode
	Inode number. More...
const FileSystem::FileType	m_type
	Type of this file. More...
UserID	m_uid
	Owner of the file. More...
GroupID	m_gid
	Group of the file. More...
FileSystem::FileModes	m_access
	Access permissions. More...
Size	m_size
	Size of the file, in bytes. More...

Detailed Description

Abstract device class interface.

Definition at line 35 of file Device.h.

Constructor & Destructor Documentation

Device()

Device::Device	(	const u32	inode,
		const FileSystem::FileType	type
	)

Constructor.

Parameters

inode	Inode number for this Device
type	Type of file

Definition at line 20 of file Device.cpp.

~Device()

Device::~Device ( )

virtual

Destructor.

Definition at line 26 of file Device.cpp.

Member Function Documentation

getIdentifier()

const String & Device::getIdentifier ( ) const

virtual

Get unique device identifier.

Returns

String object

Definition at line 30 of file Device.cpp.

References m_identifier.

Referenced by DeviceServer::initialize().

initialize()

FileSystem::Result Device::initialize ( )

virtual

Initialize the device.

Returns

Result code

Reimplemented in ATAController, Sun8iEmac, Terminal, VGA, Time, NS16550, PL011, i8250, NetworkDevice, Keyboard, and Loopback.

Definition at line 35 of file Device.cpp.

References FileSystem::Success.

Referenced by NetworkDevice::initialize(), and DeviceServer::initialize().

interrupt()

FileSystem::Result Device::interrupt ( const Size  vector )

virtual

Called when an interrupt has been triggered for this device.

Parameters

vector

Vector number of the interrupt.

Returns

Result code

Reimplemented in Sun8iEmac, ATAController, NS16550, PL011, i8250, and Keyboard.

Definition at line 40 of file Device.cpp.

References FileSystem::Success.

Field Documentation

m_identifier

String Device::m_identifier

protected

Unique identifier for this Device.

Definition at line 79 of file Device.h.

Referenced by ATAController::ATAController(), getIdentifier(), i8250::i8250(), Keyboard::Keyboard(), NS16550::NS16550(), PL011::PL011(), Terminal::Terminal(), Time::Time(), and VGA::VGA().

---

The documentation for this class was generated from the following files:

• lib/libfs/Device.h
• lib/libfs/Device.cpp
