The PL011 is a commonly available UART device frequently found in ARM systems. More...
#include <PL011.h>
Public Member Functions | |
| PL011 (const u32 irq) | |
| Constructor. More... | |
| virtual FileSystem::Result | initialize () |
| Initializes the UART. More... | |
| virtual FileSystem::Result | interrupt (const Size vector) |
| Called when an interrupt has been triggered for this device. More... | |
| virtual FileSystem::Result | read (IOBuffer &buffer, Size &size, const Size offset) |
| Read bytes from the device. More... | |
| virtual FileSystem::Result | write (IOBuffer &buffer, Size &size, const Size offset) |
| Write bytes to the device. More... | |

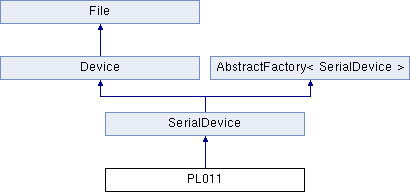

 Public Member Functions inherited from SerialDevice | |
| SerialDevice (const u32 irq) | |
| Constructor. More... | |
| u32 | getIrq () const |
| Get interrupt vector. More... | |
| Public Member Functions inherited from Device | |
| Device (const u32 inode, const FileSystem::FileType type) | |
| Constructor. More... | |
| virtual | ~Device () |
| Destructor. More... | |
| virtual const String & | getIdentifier () const |
| Get unique device identifier. More... | |
| Public Member Functions inherited from File | |
| File (const u32 inode, const FileSystem::FileType type=FileSystem::RegularFile, const UserID uid=ZERO, const GroupID gid=ZERO) | |
| Constructor function. More... | |
| virtual | ~File () |
| Destructor function. More... | |
| u32 | getInode () const |
| Get inode number. More... | |
| FileSystem::FileType | getType () const |
| Retrieve our filetype. More... | |
| virtual FileSystem::Result | status (FileSystem::FileStat &st) |
| Retrieve file statistics. More... | |
| virtual bool | canRead () const |
| Check if the File has data ready for reading. More... | |
| virtual bool | canWrite () const |
| Check if the File can be written to. More... | |
Private Types | |
| enum | { PL011_DR = (0x00), PL011_RSRECR = (0x04), PL011_FR = (0x18), PL011_FR_RXFE = (1 << 4), PL011_FR_TXFE = (1 << 7), PL011_ILPR = (0x20), PL011_IBRD = (0x24), PL011_FBRD = (0x28), PL011_LCRH = (0x2C), PL011_LCRH_WLEN_8BIT = (0b11<<5), PL011_CR = (0x30), PL011_IFLS = (0x34), PL011_IMSC = (0x38), PL011_IMSC_RXIM = (1 << 4), PL011_IMSC_TXIM = (1 << 5), PL011_RIS = (0x3C), PL011_MIS = (0x40), PL011_MIS_RXMIS = (1 << 4), PL011_MIS_TXMIS = (1 << 5), PL011_ICR = (0x44), PL011_ICR_TXIC = (1 << 5), PL011_ICR_RXIC = (1 << 4), PL011_DMACR = (0x48), PL011_ITCR = (0x80), PL011_ITIP = (0x84), PL011_ITOP = (0x88), PL011_TDR = (0x8C) } |
| The offsets and flags for each register in the UART. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from AbstractFactory< SerialDevice > | |
| static SerialDevice * | create () |
| Abstract function to create an instance of T. More... | |
| Static Public Attributes inherited from SerialDevice | |
| static u32 | inodeNumber = 2 |
| Keeps track of inode number for SerialDevices. More... | |
| Protected Attributes inherited from SerialDevice | |
| const u32 | m_irq |
| interrupt vector More... | |
| Arch::IO | m_io |
| I/O instance. More... | |
| Protected Attributes inherited from Device | |
| String | m_identifier |
| Unique identifier for this Device. More... | |
| Protected Attributes inherited from File | |
| const u32 | m_inode |
| Inode number. More... | |
| const FileSystem::FileType | m_type |
| Type of this file. More... | |
| UserID | m_uid |
| Owner of the file. More... | |
| GroupID | m_gid |
| Group of the file. More... | |
| FileSystem::FileModes | m_access |
| Access permissions. More... | |
| Size | m_size |
| Size of the file, in bytes. More... | |
Detailed Description
Member Enumeration Documentation
◆ anonymous enum
|
private |
The offsets and flags for each register in the UART.
Constructor & Destructor Documentation
◆ PL011()
| PL011::PL011 | ( | const u32 | irq | ) |
Member Function Documentation
◆ initialize()
|
virtual |
Initializes the UART.
- Returns
- Result code
Reimplemented from Device.
Definition at line 34 of file PL011.cpp.
References Memory::Device, DisableIRQ, EnableIRQ, FileSystem::IOError, isKernel, SerialDevice::m_io, SerialDevice::m_irq, IO::map(), PAGESIZE, PL011_CR, PL011_FBRD, PL011_IBRD, PL011_ICR, PL011_IMSC, PL011_IMSC_RXIM, PL011_LCRH, PL011_LCRH_WLEN_8BIT, ProcessCtl(), Memory::Readable, SELF, IO::setBase(), IO::Success, FileSystem::Success, Memory::User, Memory::Writable, and ARMIO::write().
Referenced by kernel_main().
◆ interrupt()
|
virtual |
Called when an interrupt has been triggered for this device.
- Parameters
-
vector Vector number of the interrupt.
- Returns
- Result code
Reimplemented from Device.
Definition at line 87 of file PL011.cpp.
References EnableIRQ, isKernel, SerialDevice::m_io, SerialDevice::m_irq, PL011_ICR, PL011_ICR_RXIC, PL011_ICR_TXIC, PL011_MIS, PL011_MIS_RXMIS, PL011_MIS_TXMIS, ProcessCtl(), ARMIO::read(), SELF, FileSystem::Success, and ARMIO::write().
◆ read()
|
virtual |
Read bytes from the device.
- Parameters
-
buffer Input/Output buffer to output bytes to. size Maximum number of bytes to read on input. On output, the actual number of bytes read. offset Offset inside the file to start reading.
- Returns
- Result code
Reimplemented from File.
Definition at line 108 of file PL011.cpp.
References IOBuffer::bufferedWrite(), IOBuffer::getCount(), SerialDevice::m_io, PL011_DR, PL011_FR, PL011_FR_RXFE, PL011_ICR, PL011_ICR_RXIC, PL011_MIS, PL011_MIS_RXMIS, ARMIO::read(), FileSystem::RetryAgain, FileSystem::Success, and ARMIO::write().
◆ write()
|
virtual |
Write bytes to the device.
- Parameters
-
buffer Input/Output buffer to input bytes from. size Maximum number of bytes to write on input. On output, the actual number of bytes written. offset Offset inside the file to start writing.
- Returns
- Result code
Reimplemented from File.
Definition at line 139 of file PL011.cpp.
References SerialDevice::m_io, PL011_DR, PL011_FR, PL011_FR_TXFE, PL011_ICR, PL011_ICR_TXIC, PL011_MIS, PL011_MIS_TXMIS, ARMIO::read(), FileSystem::RetryAgain, FileSystem::Success, and ARMIO::write().
The documentation for this class was generated from the following files:
